TR by S&P Total Recovery for All Climates

Energy Recovery Ventilators

TR Model

Model Features

  • MERV-8 filters
  • Less than 1-watt standby power consumption
  • Transformer/relay package allowing simple on/off control
  • Plastic double collars for 6" or 8" direct duct connection (TR300 ONLY uses an 8" duct connection)
  • Integral mounting flange and hanging bracket system
  • Fully insulated case
  • Large cores for high efficiency
  • No condensate pan or drain required
  • HVI Certified
  • cULus Listed
  • This product meets the requirements of Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022). Download letter here.

HVI cULus BABA-ACT

Model Overview

To protect the two most valuable investments of your life, your home, and your family, improving indoor air quality is key. With S&P's TR (total recovery) Series for all climates, stale room air is exhausted, and the fresh outdoor air is brought back into the house. With this line of ERVs (Energy Recovery Ventilators) these two air streams are directed through a highly developed "air-to-air" energy exchange core. The air streams are physically separated by many layers of "plates" so there is no mixing or contamination of the fresh air. The plates are made of an engineered "resin" material that simultaneously transfers heat by conduction and humidity by attracting and moving water vapor from one air stream to the other.

S&P's TRs moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. Unlike other ERVs on the market no mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.

WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.

10-year core warranty, 5-year unit warranty

Core Performance for TR90/90G

Airflow CFM ESP in H2O Temp EFF% Total EFF% Winter Total EFF% Summer
36 0.60 78 75 65
53 0.50 74 69 58
68 0.40 70 65 53
81 0.30 67 61 49
93 0.20 64 58 45
108 0.10 61 55 42

Core Performance for TR130

Airflow CFM ESP in H2O Temp EFF% Total EFF% Winter Total EFF% Summer
78 0.60 78 73 59
104 0.50 75 69 54
125 0.40 72 66 50
136 0.30 71 64 48
153 0.20 68 61 45
163 0.10 67 59 42

Core Performance for TR200

Airflow CFM ESP in H2O Temp EFF% Total EFF% Winter Total EFF% Summer
95 0.80 83 79 68
131 0.70 80 76 64
157 0.60 79 74 62
172 0.50 78 73 61
182 0.40 77 72 60
189 0.30 77 71 59
195 0.20 76 71 59
206 0.10 76 70 58

Core Performance for TR300

Airflow CFM ESP in H2O Temp EFF% Total EFF% Winter Total EFF% Summer
170 1.0 78 73 59
191 0.9 77 71 57
214 0.8 75 69 55
256 0.7 73 66 51
278 0.6 71 65 49
295 0.5 70 63 47
311 0.4 69 62 46

Dimensions for TR90/90G

Dimensional drawing for the TR90(G) model.

Dimensions for TR130

Dimensional drawing for the TR130 model.

Dimensions for TR200

Dimensional drawing for the TR200 model.

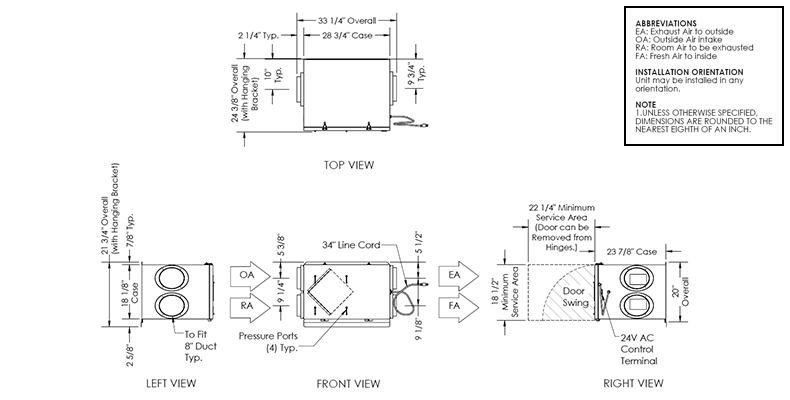

Dimensions for TR300

Dimensional drawing for the TR300 model.

Additional accessories are available for certain products. Contact your JencoFan Representative for more information about these accessories.

Standard Accessories

990076 Universal filters (10 packs of filter media) for TR90(G) thru TR300 Submittal
990447 Universal filters (3 pack) for TR90(G) thru TR300 Submittal
990756 MERV 13 filter (3 packs of filter) for TR90/TR90G ERV
990757 MERV 13 filter (3 packs of filter) for TR130 ERV
990759 MERV 13 filter (3 packs of filter) for TR200/TR300 ERV
990761 MERV 13 filter (10 packs of filter) for TR90/TR90G ERV
990762 MERV 13 filter (10 packs of filter) for TR130 ERV
990764 MERV 13 filter (10 packs of filter) for TR200/TR300 ERV
990766 MERV 13 filter (25 packs of filter) for TR90/TR90G ERV
990767 MERV 13 filter (25 packs of filter) for TR130 ERV
990769 MERV 13 filter (25 packs of filter) for TR200/TR300 ERV
CAR Metal Backdraft Damper Submittal
BD6 6-inch Gravity Backdraft Damper for TR90(G) thru TR200
BD8 8-inch Gravity Backdraft Damper for TR90(G) thru TR300
DH6-120V In-line Duct Heater Submittal
FA8-G 8-inch Galvanized Metal Wall Cap for TR90(G) thru TR300
FA8-P 8-inch Paintable Metal Wall Cap for TR90(G) thru TR300
CAR Metal Backdraft Damper Submittal
FT247 24/7 Programmable Fan Timer Submittal
MD Motorized Backdraft Damper Submittal
SCO2-W CO2 CONTROL WALL MOUNT IOM
SC-TRCE SPEED CONTROL ACCESSORY (FOR EC MOTOR UNITS)
SMC-C MOTION OCCUPANCY CONTROL CEILING IOM
SMC-W MOTION OCCUPANCY CONTROL WALL IOM
STC7D-W DIGITAL TIME CLOCK - WALL MOUNT IOM
SFM Percentage Timer Control with Furnace Interlock IOM
SPBL Push Button Point-of-Use Control IOM
SPTL Percentage Timer Control IOM
VB106 6-inch Brown Vinyl Wall Cap for TR90(G) thru TR200
VT8 8-inch Taupe Vinyl Wall Cap for TR90(G) thru TR300
VW106 6-inch White Vinyl Wall Cap for TR90(G) thru TR200
VW12x8 12x8-inch Louver to 8-inch Round Galvanized Metal Wall Cap for TR90(G) thru TR300
